Replacement GReddy (TD / TZ) Turbo Oil Return

Replacement GReddy (TD / TZ) Turbo Oil Return

USE THE PULL-DOWN MENU ABOVE TO SELECT FROM OPTIONS, THEN ADD TO CART ^

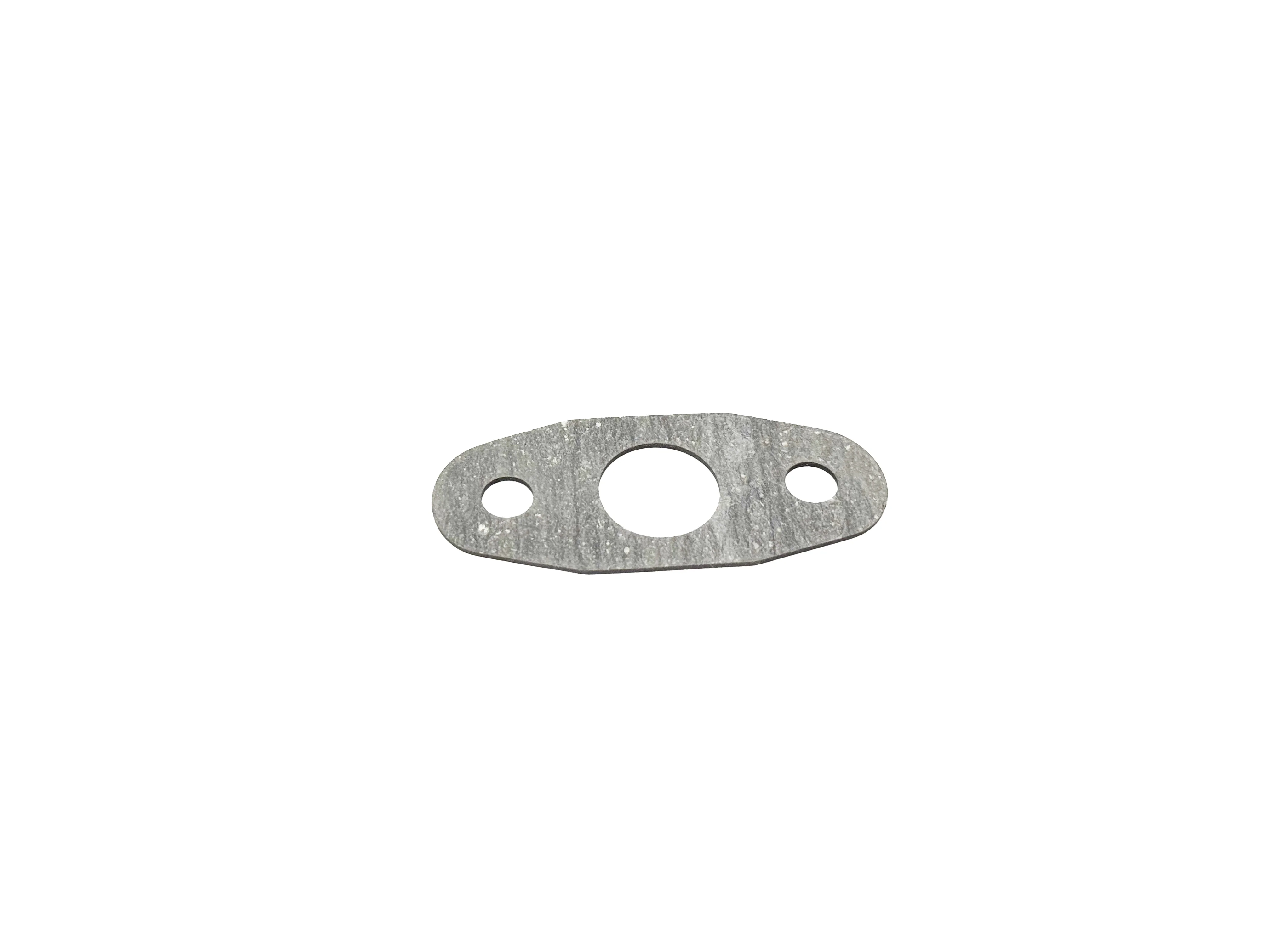

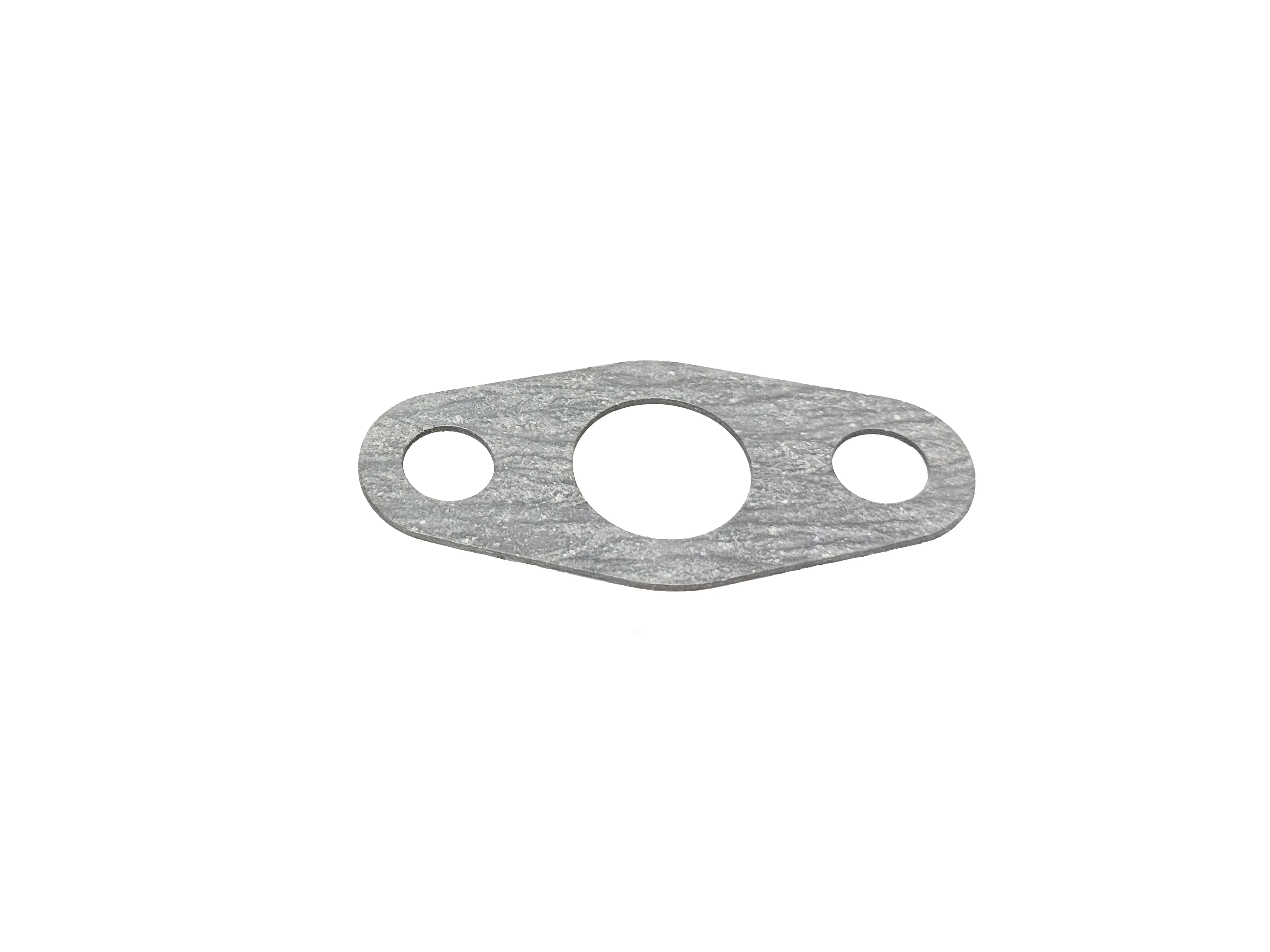

GReddy Turbo Oil Return (drain) Flange Gasket

Select Size: Small or Large

Composite GReddy Turbo Oil Return Tube Flange Gasket - Small 16mm Dia.
   For : TD025, TD04, TD04H, TD05, TD05H, TD06, & TD06H Turbochargers 2-bolt pattern (38mm) for M6xP1.0 bolts

Composite GReddy Turbo Oil Return Tube Flange Gasket - Large 21mm Dia.
   For : TD06SH25G, TD07S, T67, T78, T88, & T88H Turbochargers 2-bolt pattern (51mm) for M10xP1.5 bolts

Oil Return Gaskets

Small 1 11900200 Outlet - TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G
Large 2 11900201 Outlet - T67, TD06SH25G, TD07S, T78, T88(H)




IN
11900221 specialized turbo inlet flange for T67 for TD06SH25G

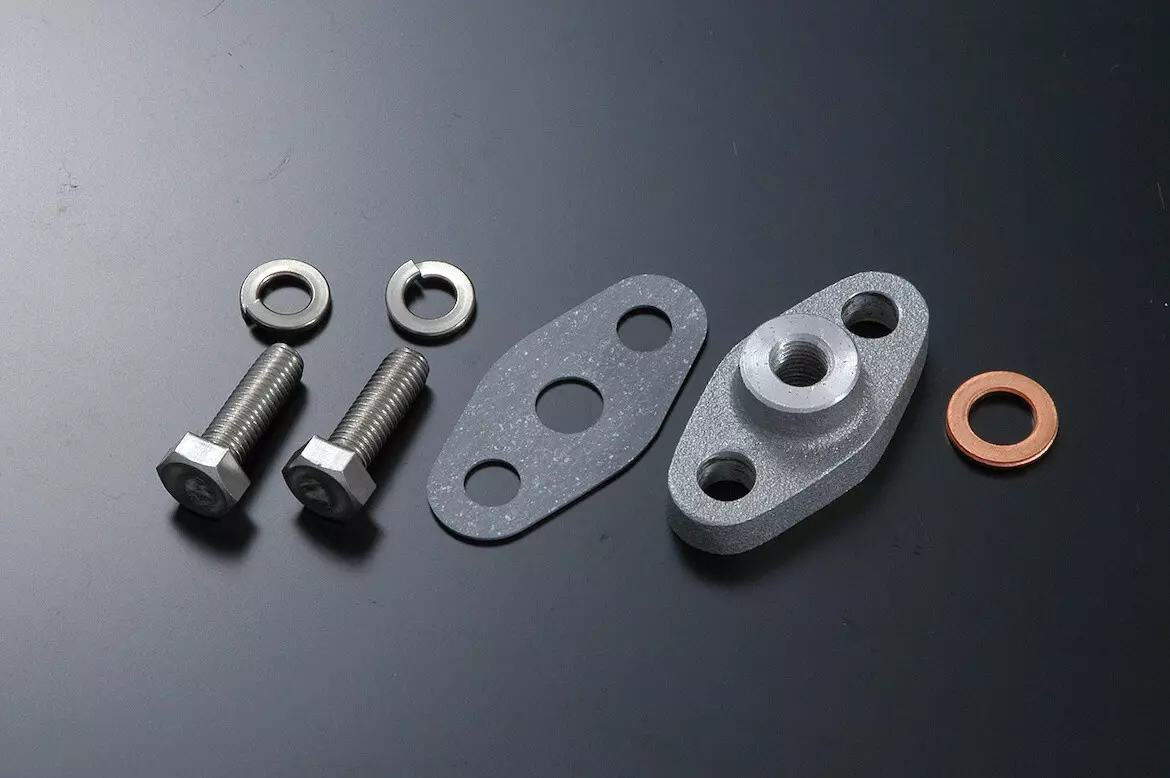

Oil Return Flanges

A flanged tube for mounting the oil return pipe to the GReddy turbine. Made from steel and zinc plated.

Product name specification CODE remarks
With 16φ flange (small) Oil return flange small (L = 45 mm) 11920090 TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G *1
With 19φ flange (small) Oil return flange small (L = 45 mm) 11900880
With 16φ flange (large) Large oil return flange (L = 45 mm) 11920091 T67, TD06SH25G, TD07S, T78, T88, T88H *1
With 19φ flange (large) Large oil return flange (L = 45 mm) 11900881

Select Flange Size
From $1.20

Original: $4.00

-70%
Replacement GReddy (TD / TZ) Turbo Oil Return—

$4.00

$1.20

Product Information

Shipping & Returns

Description

USE THE PULL-DOWN MENU ABOVE TO SELECT FROM OPTIONS, THEN ADD TO CART ^

GReddy Turbo Oil Return (drain) Flange Gasket

Select Size: Small or Large

Composite GReddy Turbo Oil Return Tube Flange Gasket - Small 16mm Dia.
   For : TD025, TD04, TD04H, TD05, TD05H, TD06, & TD06H Turbochargers 2-bolt pattern (38mm) for M6xP1.0 bolts

Composite GReddy Turbo Oil Return Tube Flange Gasket - Large 21mm Dia.
   For : TD06SH25G, TD07S, T67, T78, T88, & T88H Turbochargers 2-bolt pattern (51mm) for M10xP1.5 bolts

Oil Return Gaskets

Small 1 11900200 Outlet - TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G
Large 2 11900201 Outlet - T67, TD06SH25G, TD07S, T78, T88(H)




IN
11900221 specialized turbo inlet flange for T67 for TD06SH25G

Oil Return Flanges

A flanged tube for mounting the oil return pipe to the GReddy turbine. Made from steel and zinc plated.

Product name specification CODE remarks
With 16φ flange (small) Oil return flange small (L = 45 mm) 11920090 TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G *1
With 19φ flange (small) Oil return flange small (L = 45 mm) 11900880
With 16φ flange (large) Large oil return flange (L = 45 mm) 11920091 T67, TD06SH25G, TD07S, T78, T88, T88H *1
With 19φ flange (large) Large oil return flange (L = 45 mm) 11900881
