80MM ALUMINUM PIPING SET FOR RB26 SINGLE TB SURGE TANK - (13920402)

GReddy RB26 Piping Set for Surge Tank 80mm

Product composition

80Φ set

●Aluminum pipe 80Φ 2 pieces
●Silicon hose 80Φ 2 pieces
●Silicon hose 80-100Φ 1 piece
●Hose band #48 6 pieces

[Compatible models] Nissan / Skyline GT-R

Vehicle model: E-BNR32
Engine model: RB26DETT
Model year: 1989.08 - 1994.12

 GReddy Surge RB26 Piping Set 80Φ

TRUST CODE: 13920402

size	Compatible intercooler
80Φ set	GReddy IC KIT Skyline GT-R T-23F (12020208)	GReddy IC KIT Skyline GT-R T-24F (12020223)	GReddy IC KIT BNR32 T-29F (12020214)
100Φ set	GReddy IC KIT BNR32 T-29F for surge (12020215)



Product features

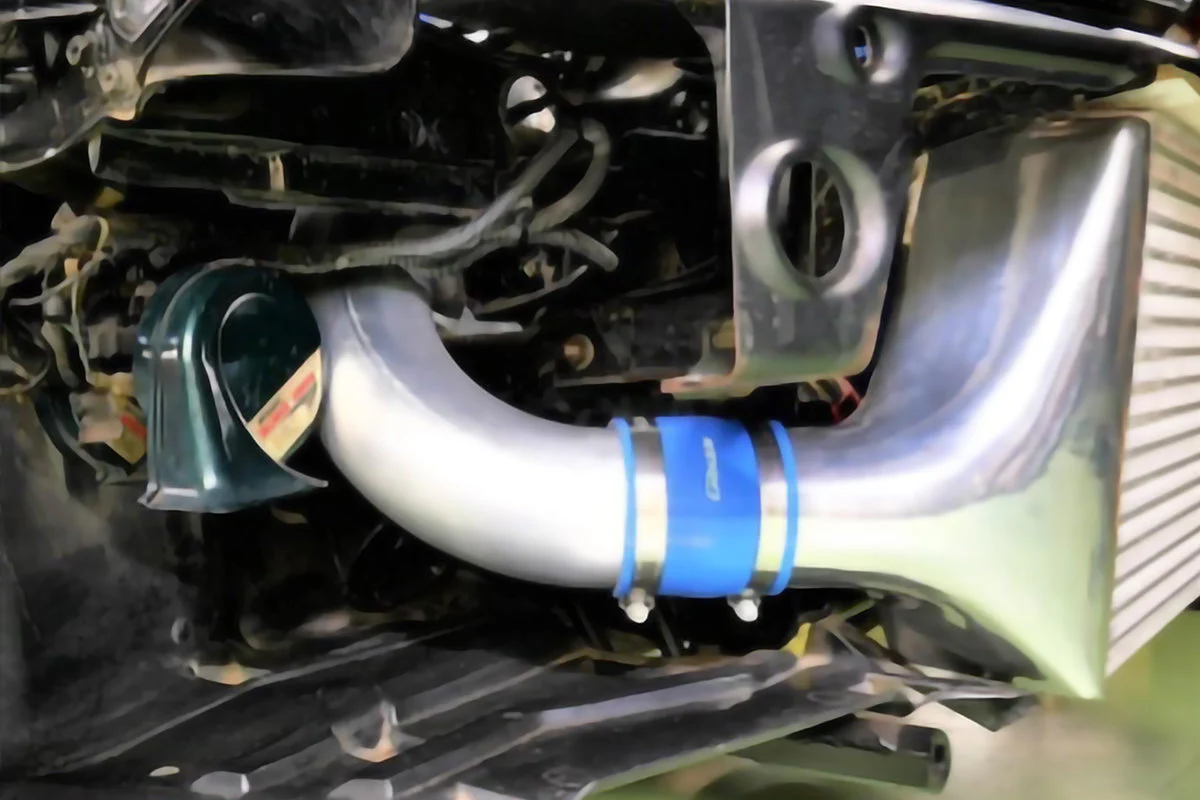

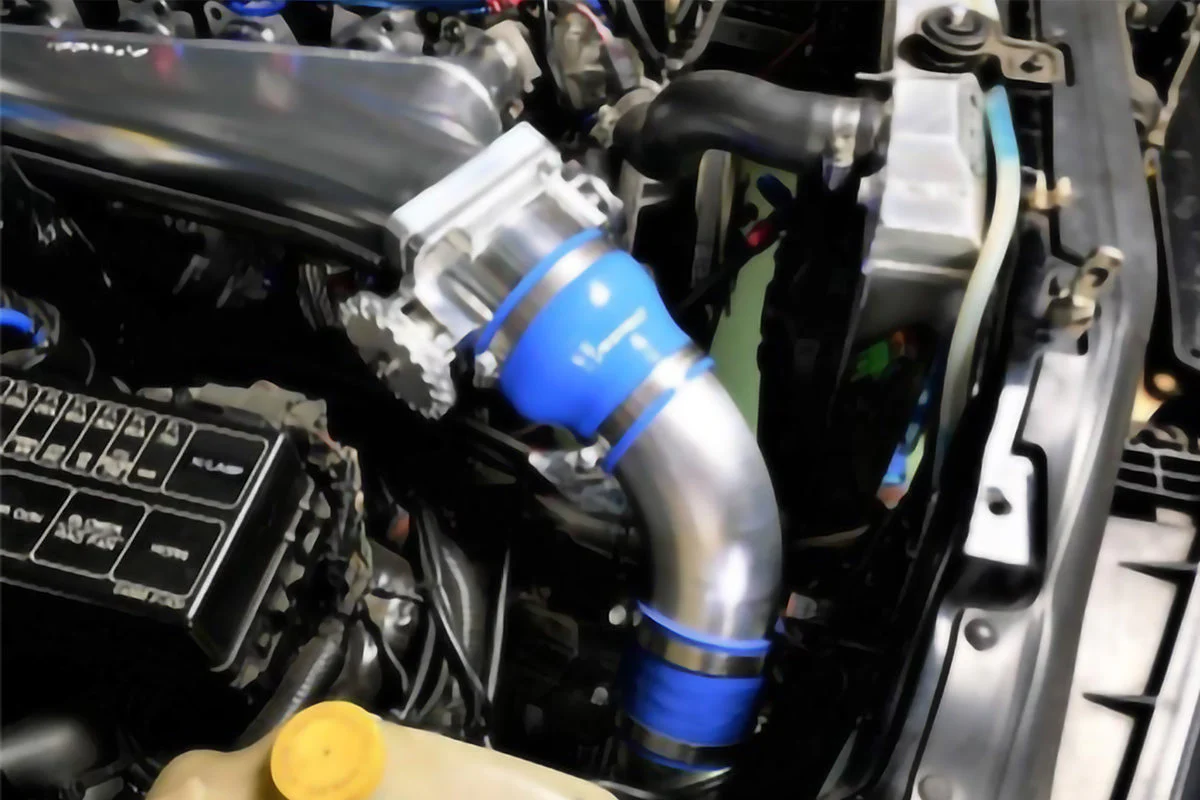

●This is an aluminum buffed piping set from the intercooler outlet to the surge tank, which is required when replacing the GReddy surge tank where the throttle mounting position will be changed.

●Exclusive design allows for shorter work.

Specification

●Surge tank for single throttle only ( CODE: 13522307 )
●Battery transfer required
●Body modification required
