GReddy 10row Std. Oil Cooler Kit(s)

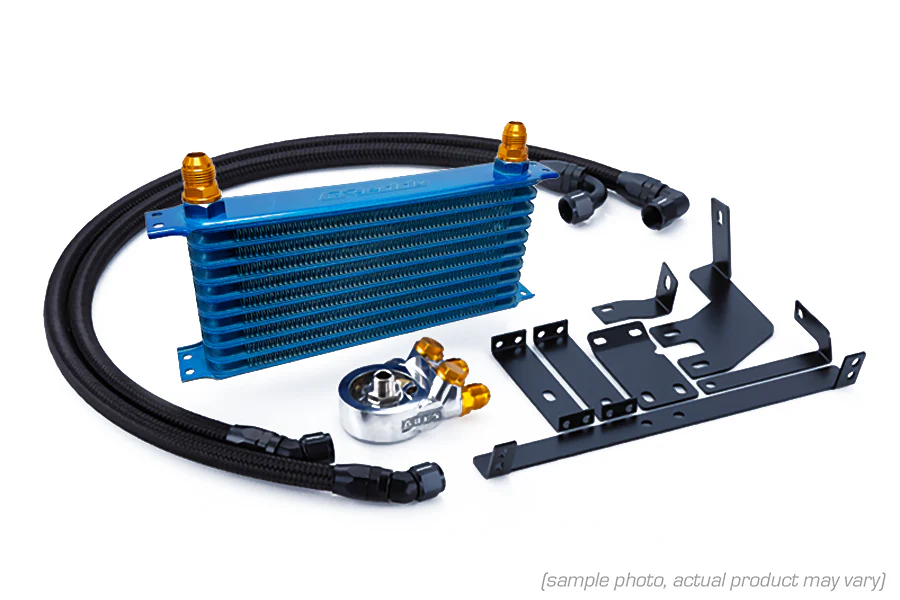

GReddy Standard 10row Oil Cooler Kits - Complete bolt-on engine oil cooler kit with all necessary hardware: 10 row GReddy inner fin core, thermostatic Type E oil block, lines fittings and mounting. (also see GReddy Circuit Spec Oil Coolers for more options)

12014633 - ZN6/ZC6 FRS/BRZ "Zenki" (FA20) - 10row (Pos: Radiator Right) Block M20xP1.5 Filter 3/4-16UNF
12014637 - ZN6/ZC6 86/BRZ "Kouki" (FA20) - 10row (Pos: Radiator Right) Block M20xP1.5 Filter 3/4-16UNF
12014640 - GXPA16 GR Yaris (G16E-GTS) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
12014606 - AE111 Corolla (4A-GE) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
12014600 - AE86 Corolla (4A-GE) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
12024621 - BCNR33 Skyline GT-R (RB26) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
12024615 - BNR32 Skyline GT-R (RB26) - 10row (Pos: LF Bumper) Block/Filter 3/4-16UNF
12024617 - BNR32 Skyline GT-R (RB26) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
12054606 - AP1 S2000 (F20C) - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
12054602 - DC2 Integra (B18C) - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
12054604 - EK4 Civic (B16A) - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
12054611 - FD2 Civic Type R (K20A) - 10row (Pos: In front bumper) Block M20xP1.5 Filter 3/4-16UNF
12054613 - FK8 Civic Type R (K20C) - 10row (Pos: Under the engine) Block M20xP1.5 Filter 3/4-16UNF
12044607 - ND5RC Miata (P5-VP - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
12094605 - ZC21S/ZC31S Swift Sport (M15A/M16A) - 10row (Pos: Beside Radiator) Block/Filter 3/4-16UNF
12094603 - ZC32S Swift Sport (M16A) - 10row (Pos: Beside Radiator) Block/Filter 3/4-16UNF
12094604 - ZC32S Swift Sport *TK (M16A) - 10row (Pos: Beside Radiator) Block/Filter 3/4-16UNF
12094609 - ZC33S Swift Sport (K14C) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF

(12004600/12004605 - Universal Std. 10row Basic Oil Cooler kits)

When the temperature inside the engine rises excessively due to sports driving, it adversely affects the oil used for lubrication and cooling, resulting in a decrease in performance and causing engine blows. GReddy oil coolers maintain a stable oil temperature due to high heat dissipation and low pressure drop.

• By using a large-capacity core with offset fins in the core tube, it is an ideal oil cooler that has succeeded in increasing heat dissipation and reducing pressure loss.
• Sandwich blocks are used in the standard oil filter position to reduce the number of parts and ensure efficient installation.

Product Specifications

• Engine oil cooler with GReddy 10 row inner fin cores
• Oil block high mount type (dedicated oil block spacer included if necessary)

Remarks

• For 3/4-16UNF or M20xP1.5 center-bolts
• GReddy oil cooler sensor terminal (code: 12401178) included (1/8PT meter sensor can be installed)
