GReddy External O/C Thermo. Block (M18) - for Existing Relocation Kits

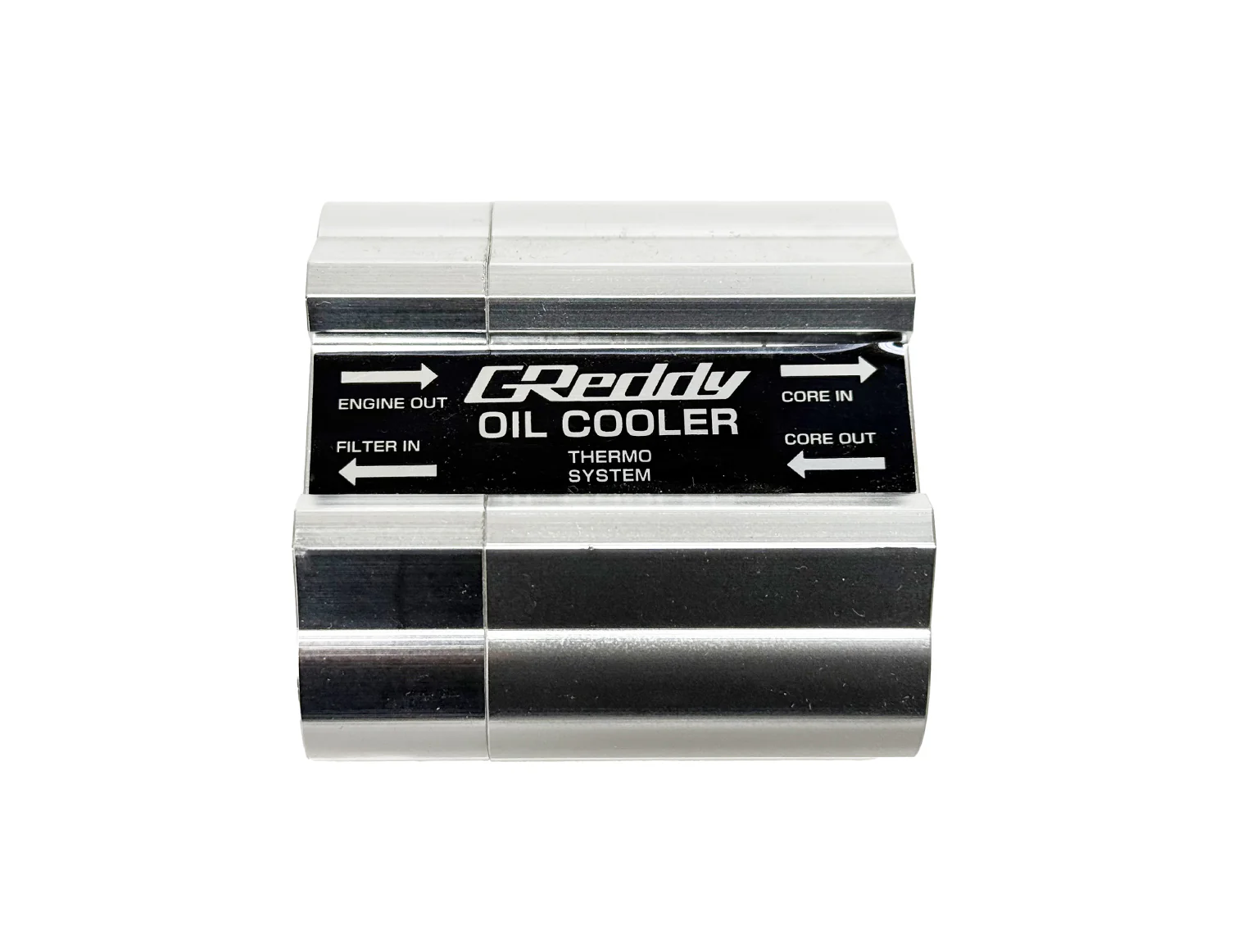

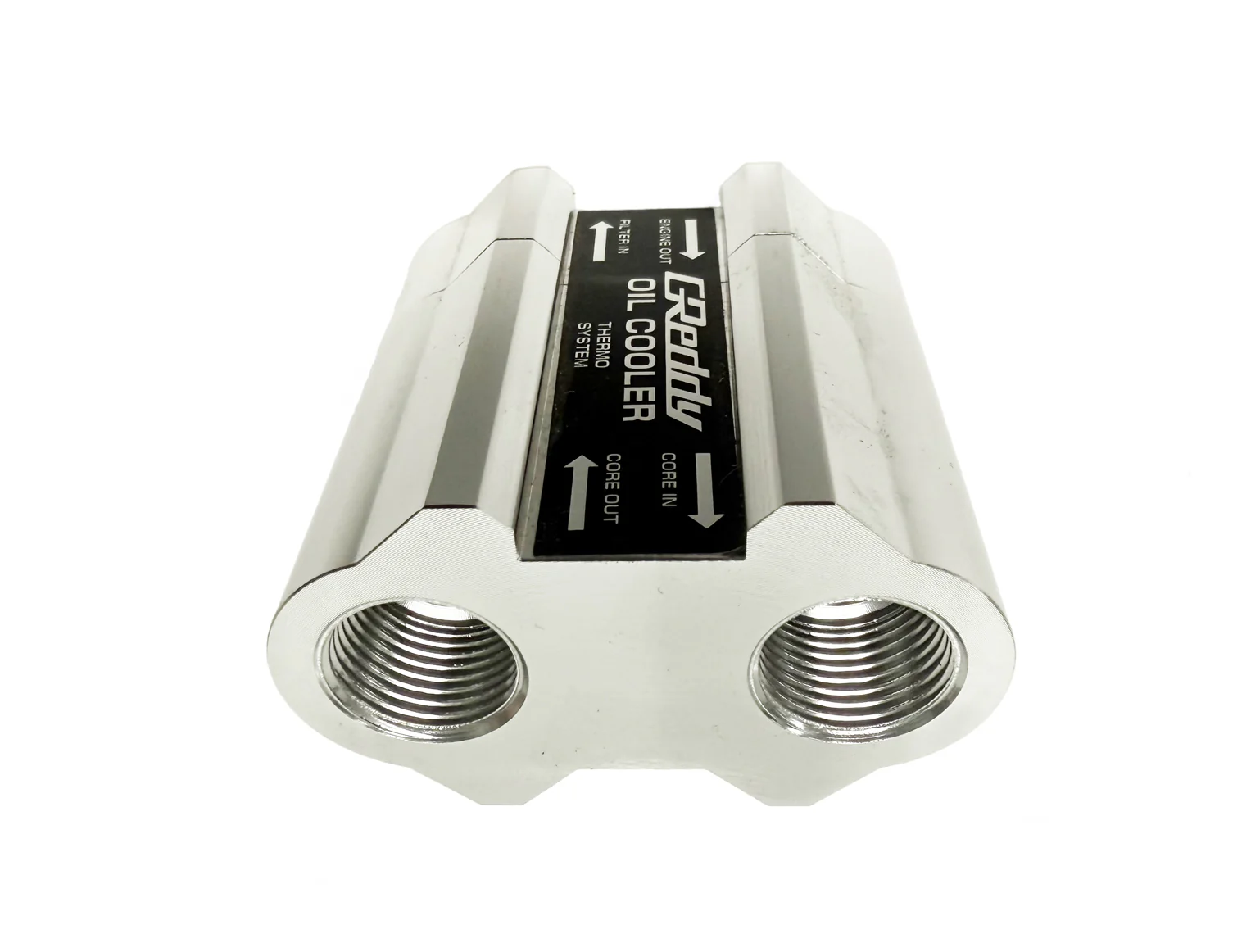

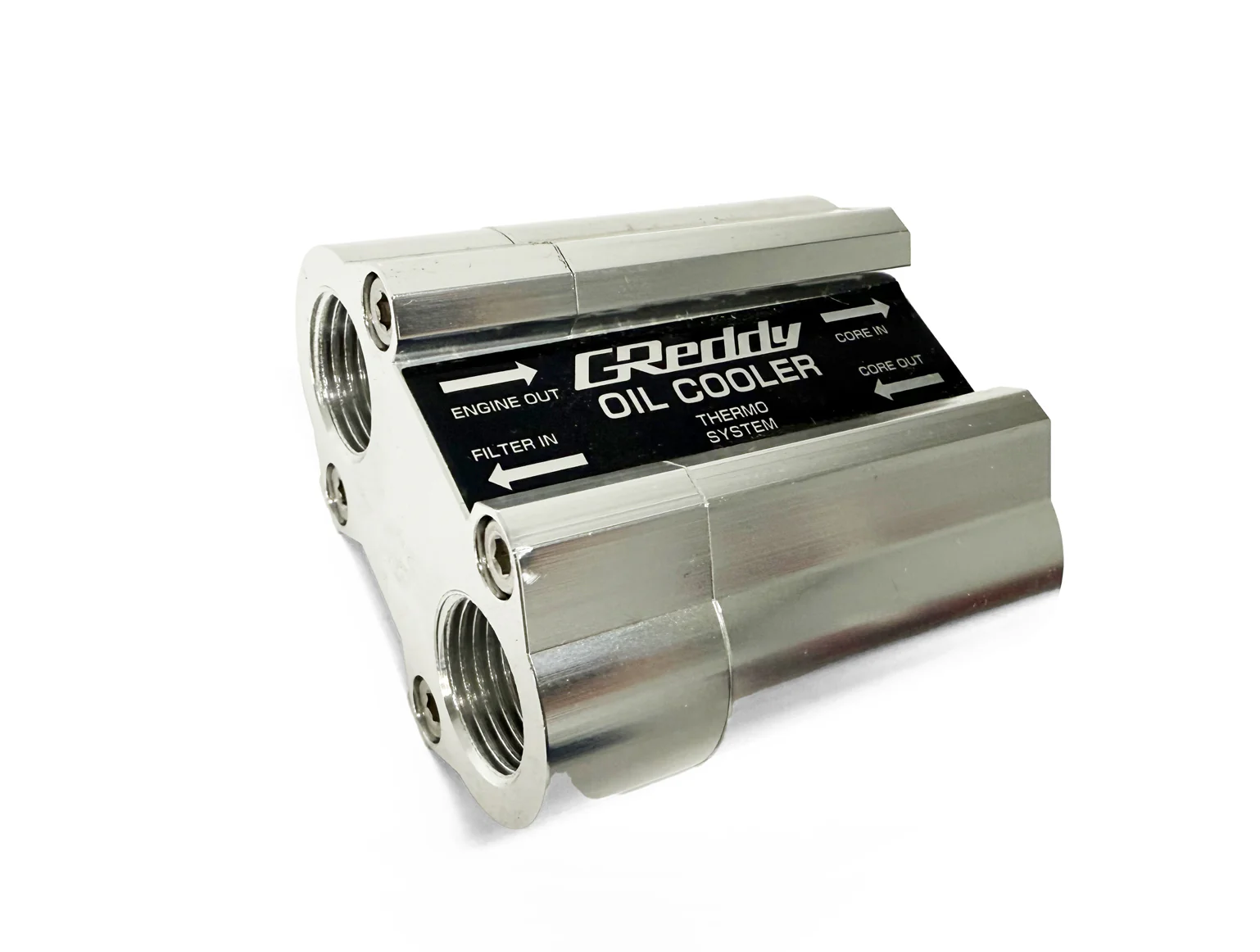

GReddy External Thermostatic Oil Block with 4x M18xP1.5 O-ring port connections, to convert a GReddy Oil Filter Relocation Kit to a thermostatically controlled Oil Cooler Kit core.  (Not needed if you are already using a Type I or Type E Oil Block Adapter)

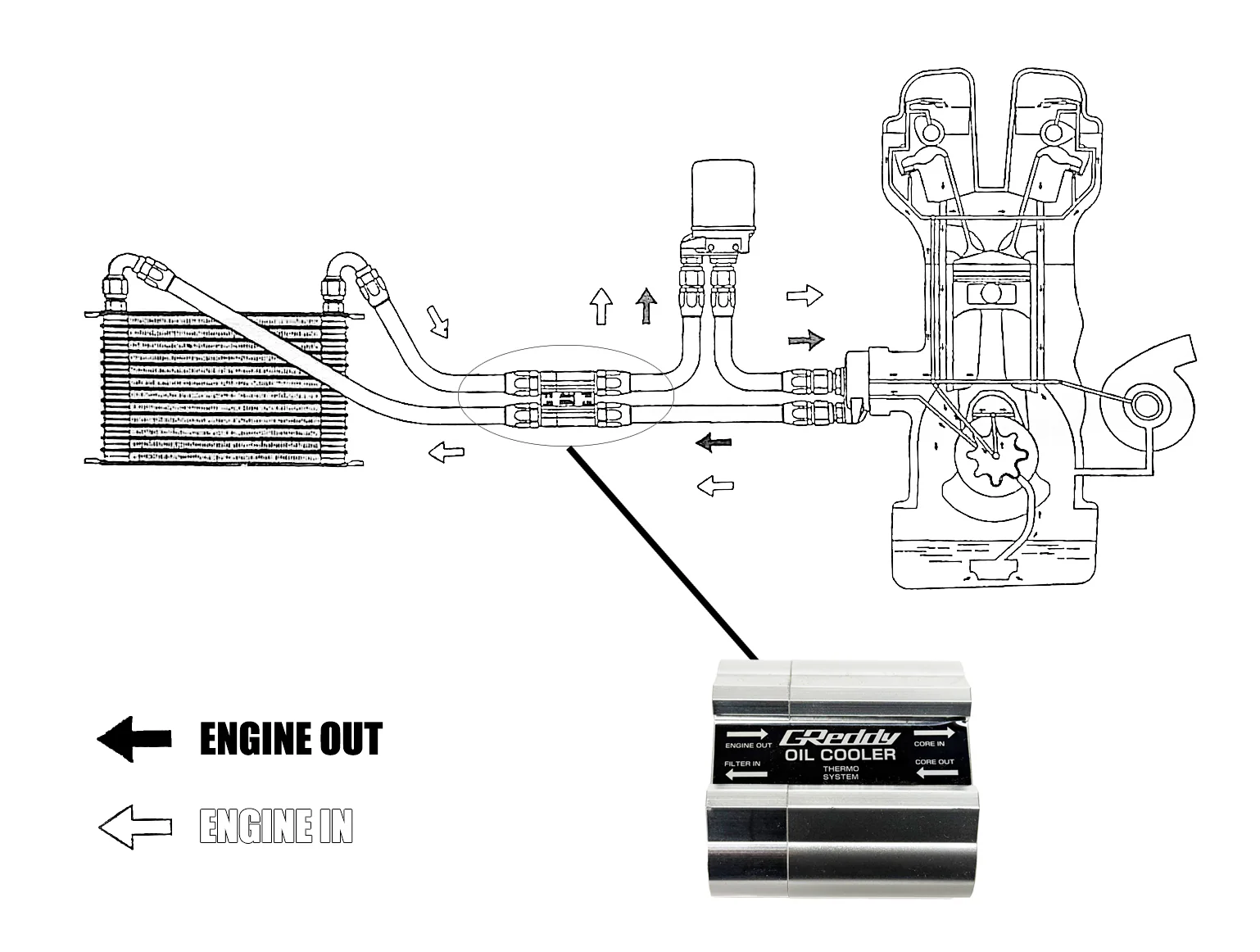

To be used to convert Application Specific GReddy Oil Relocation kits with slip-on hoses or when using GReddy Type B/F Relocation block with a Type G Filter Relocation block and wanting to add an Oil Cooler Core with a Thermostat.

 - 12005113 - Slip-on -10 Fitting (application specific type)
 - 12402150 - Direct -10 Straight Fitting
 - 12005110 - Std. -10 AN (Gold) Fitting



*with Oil Block Adapter Type-B or Type-F   p/n  12401111, 12401129, 12401131, or 12401135  and Type-G  12401139, or 12401183  (sold separately)



Replacement Parts for Oil Blocks (HERE)
