GReddy Universal Oil Cooler Kit - Basic Std. or Basic Filter Relocation Set-up Kits

GReddy Universal Oil Cooler Kit - Basic Std. or Basic Filter Relocation Set-up Kits

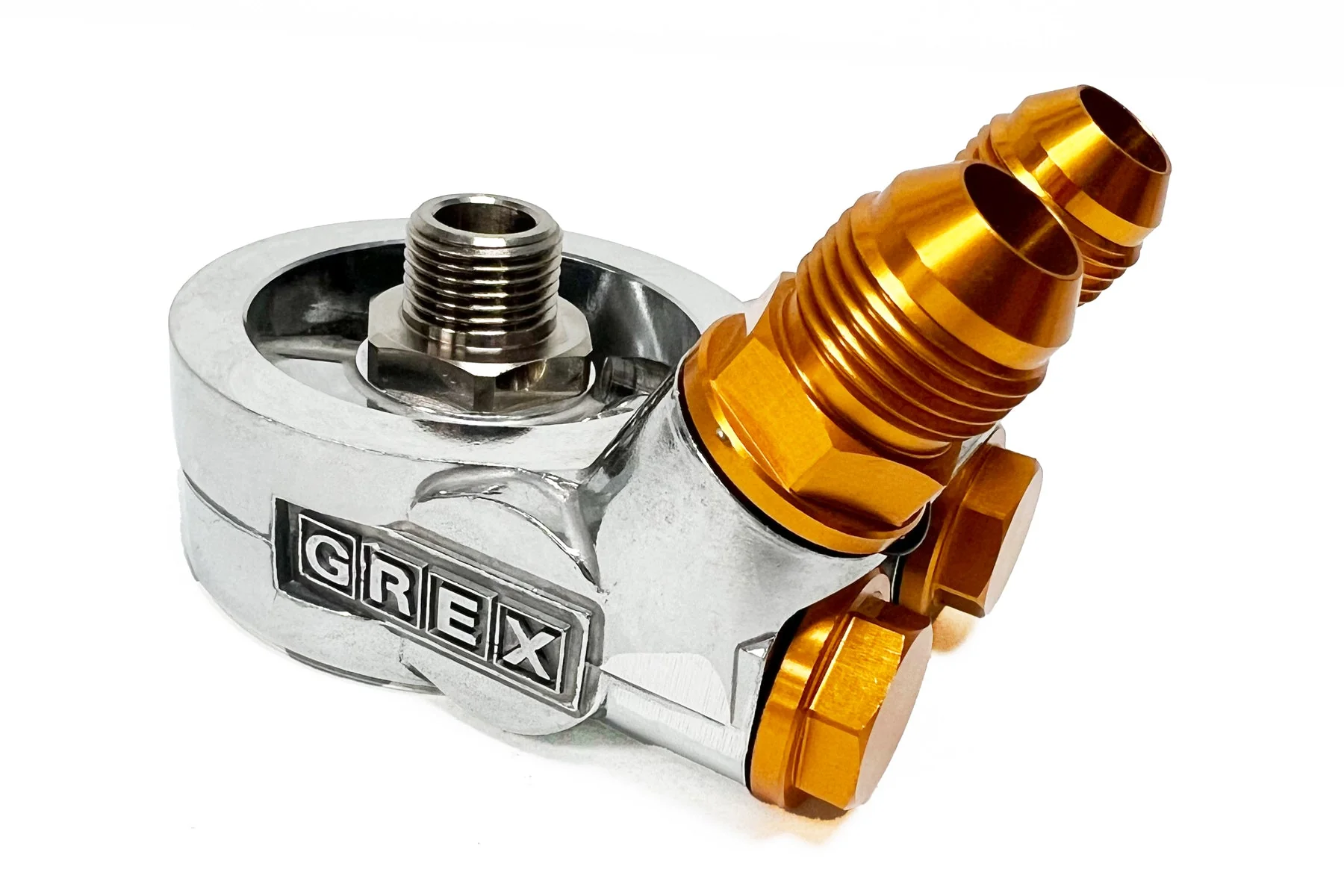

GReddy Oil Cooler Kits - Universal engine oil cooler kit with basic hardware: GReddy inner-fin Oil Cooler core, Std. thermostatic Type E oil block, or Type I and Type B/F oil blocks with basic universal lines fittings.

* All kits listed below must use a 3/4-16UNF Oil Filter (GReddy OX-1, OX-3 type)
** Optional Std. (Type-E) 12002813 replacement M20xP1.5 - M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)
*** Optional Reloc. (Type-I) 12401182CB replacement M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)

When the temperature inside the engine rises excessively due to sports driving, it adversely affects the oil used for lubrication and cooling, resulting in a decrease in performance and causing engine blows. GReddy oil coolers maintain a stable oil temperature due to high heat dissipation and low pressure drop.


Standard type Universal general-purpose oil cooler kit

   includes: AN10: 1x 3m hose, 2x straight fittings, 2x 90° fittings

Center Bolt Size O-ring size Core Type Number of Cores Hose Fittings thermostat CODE remarks
3/4-16UNF 57φ NS1010G 10 levels AN10 Built-in block 12004600
GR1208G 12 levels AN8 Built-in block 12004618
NS1310G 13 steps AN10 Built-in block 12004602
NS1610G 16 levels AN10 Built-in block 12004603
M20×P1.5 57φ NS1010G 10 levels AN10 Built-in block 12004605 *1
GR1208G 12 levels AN8 Built-in block 12004619 *1
NS1310G 13 steps AN10 Built-in block 12004607 *1
NS1610G 16 levels AN10 Built-in block 12004608 *1

*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.

Universal oil cooler kit with filter relocation

   includes:  AN10: 1x 3m hose, 4x straight fittings, 2x 45°, 2x 90°

Center Bolt Size O-ring size Core Type Number of Cores Hose Fittings thermostat CODE remarks
3/4-16UNF 57φ NS1010G 10 levels AN10 Built-in block 12004400
GR1208G 12 levels AN8 Built-in block 12004430
NS1310G 13 steps AN10 Built-in block 12004402
NS1610G 16 levels AN10 Built-in block 12004403
62φ NS1010G 10 levels AN10 Built-in block 12004410
NS1310G 13 steps AN10 Built-in block 12004411
NS1610G 16 levels AN10 Built-in block 12004412
M20×P1.5 57φ NS1010G 10 levels AN10 Built-in block 12004405 *1
GR1208G 12 levels AN8 Built-in block 12004431 *1
NS1310G 13 steps AN10 Built-in block 12004407 *1
NS1610G 16 levels AN10 Built-in block 12004408 *1
62φ NS1010G 10 levels AN10 Built-in block 12004414 *1
NS1310G 13 steps AN10 Built-in block 12004415 *1
NS1610G 16 levels AN10 Built-in block 12004416 *1

*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.



    Select Universal Oil Cooler Type and Size
    From $303.60

    Original: $1,012.00

    -70%
    GReddy Universal Oil Cooler Kit - Basic Std. or Basic Filter Relocation Set-up Kits—

    $1,012.00

    $303.60

    Product Information

    Shipping & Returns

    Description

    GReddy Oil Cooler Kits - Universal engine oil cooler kit with basic hardware: GReddy inner-fin Oil Cooler core, Std. thermostatic Type E oil block, or Type I and Type B/F oil blocks with basic universal lines fittings.

    * All kits listed below must use a 3/4-16UNF Oil Filter (GReddy OX-1, OX-3 type)
    ** Optional Std. (Type-E) 12002813 replacement M20xP1.5 - M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)
    *** Optional Reloc. (Type-I) 12401182CB replacement M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)

    When the temperature inside the engine rises excessively due to sports driving, it adversely affects the oil used for lubrication and cooling, resulting in a decrease in performance and causing engine blows. GReddy oil coolers maintain a stable oil temperature due to high heat dissipation and low pressure drop.


    Standard type Universal general-purpose oil cooler kit

       includes: AN10: 1x 3m hose, 2x straight fittings, 2x 90° fittings

    Center Bolt Size O-ring size Core Type Number of Cores Hose Fittings thermostat CODE remarks
    3/4-16UNF 57φ NS1010G 10 levels AN10 Built-in block 12004600
    GR1208G 12 levels AN8 Built-in block 12004618
    NS1310G 13 steps AN10 Built-in block 12004602
    NS1610G 16 levels AN10 Built-in block 12004603
    M20×P1.5 57φ NS1010G 10 levels AN10 Built-in block 12004605 *1
    GR1208G 12 levels AN8 Built-in block 12004619 *1
    NS1310G 13 steps AN10 Built-in block 12004607 *1
    NS1610G 16 levels AN10 Built-in block 12004608 *1

    *1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.

    Universal oil cooler kit with filter relocation

       includes:  AN10: 1x 3m hose, 4x straight fittings, 2x 45°, 2x 90°

    Center Bolt Size O-ring size Core Type Number of Cores Hose Fittings thermostat CODE remarks
    3/4-16UNF 57φ NS1010G 10 levels AN10 Built-in block 12004400
    GR1208G 12 levels AN8 Built-in block 12004430
    NS1310G 13 steps AN10 Built-in block 12004402
    NS1610G 16 levels AN10 Built-in block 12004403
    62φ NS1010G 10 levels AN10 Built-in block 12004410
    NS1310G 13 steps AN10 Built-in block 12004411
    NS1610G 16 levels AN10 Built-in block 12004412
    M20×P1.5 57φ NS1010G 10 levels AN10 Built-in block 12004405 *1
    GR1208G 12 levels AN8 Built-in block 12004431 *1
    NS1310G 13 steps AN10 Built-in block 12004407 *1
    NS1610G 16 levels AN10 Built-in block 12004408 *1
    62φ NS1010G 10 levels AN10 Built-in block 12004414 *1
    NS1310G 13 steps AN10 Built-in block 12004415 *1
    NS1610G 16 levels AN10 Built-in block 12004416 *1

    *1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.
