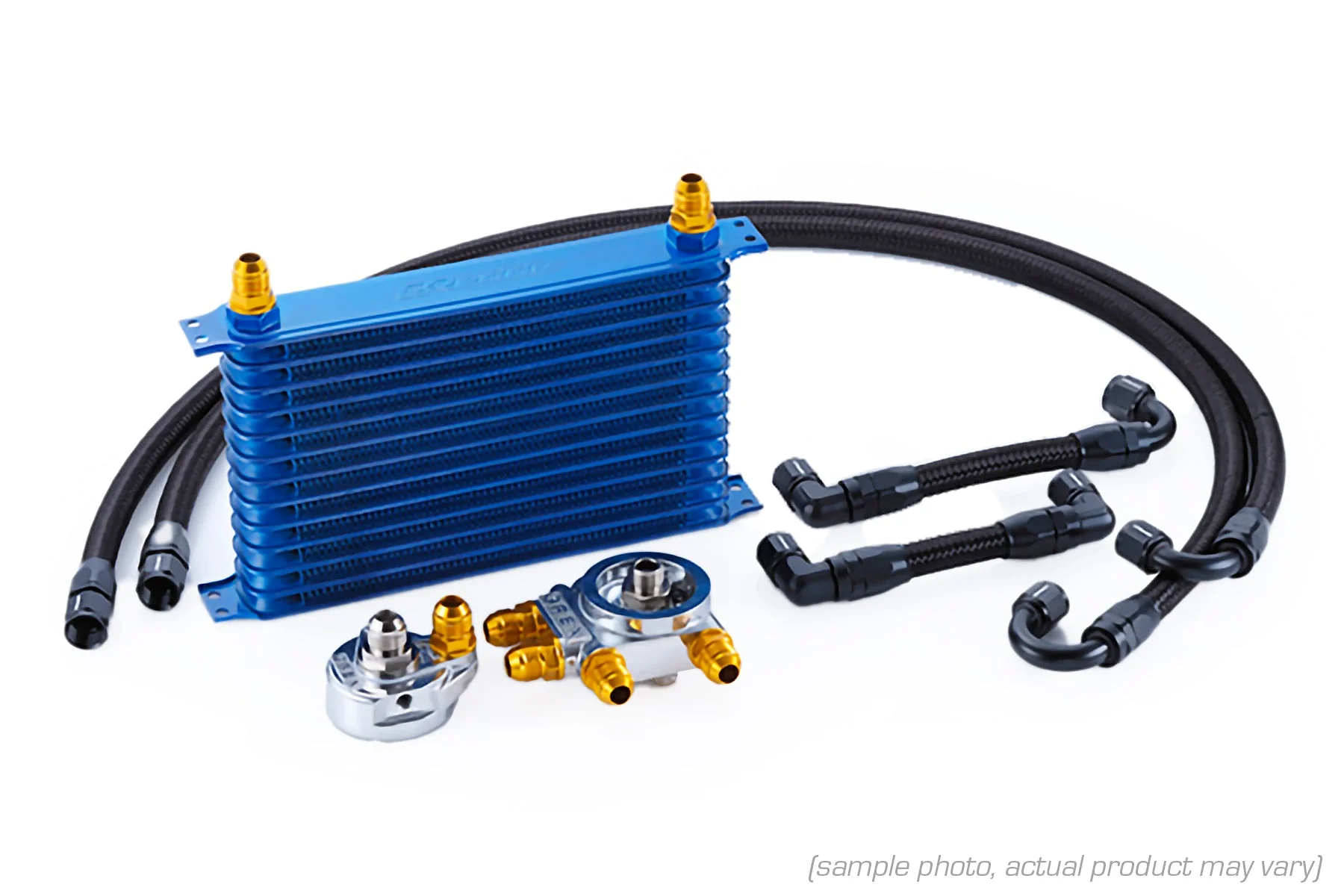

OIL COOLER KIT W/ FILTER RELOCATION JZX90 13-ROW - (12014408)

Oil cooler kit moving 13row for JZX90

Product Features

• An ideal oil cooler that uses a large-capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
• A type of kit that can be installed on cars that do not have clearance near the oil filter.
• By moving the element, it is easier to replace the oil filter and improve maintenance.

Product Specifications

• Core type: NS1310G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Element installation location: Next to the air conditioner compressor
• Center bolt size: 3/4-16UNF

Compatible models: TOYOTA Mark II series

• Vehicle model: JZX90
• E/G model: 1JZ-GTE
• Year: 92.10-96.09
• CODE:12014408

Remarks

• GReddy I/C KIT cannot be installed at the same time
  *When installing on H4.10 to H3.10 vehicles, oil filter bracket change and water line processing are required.
