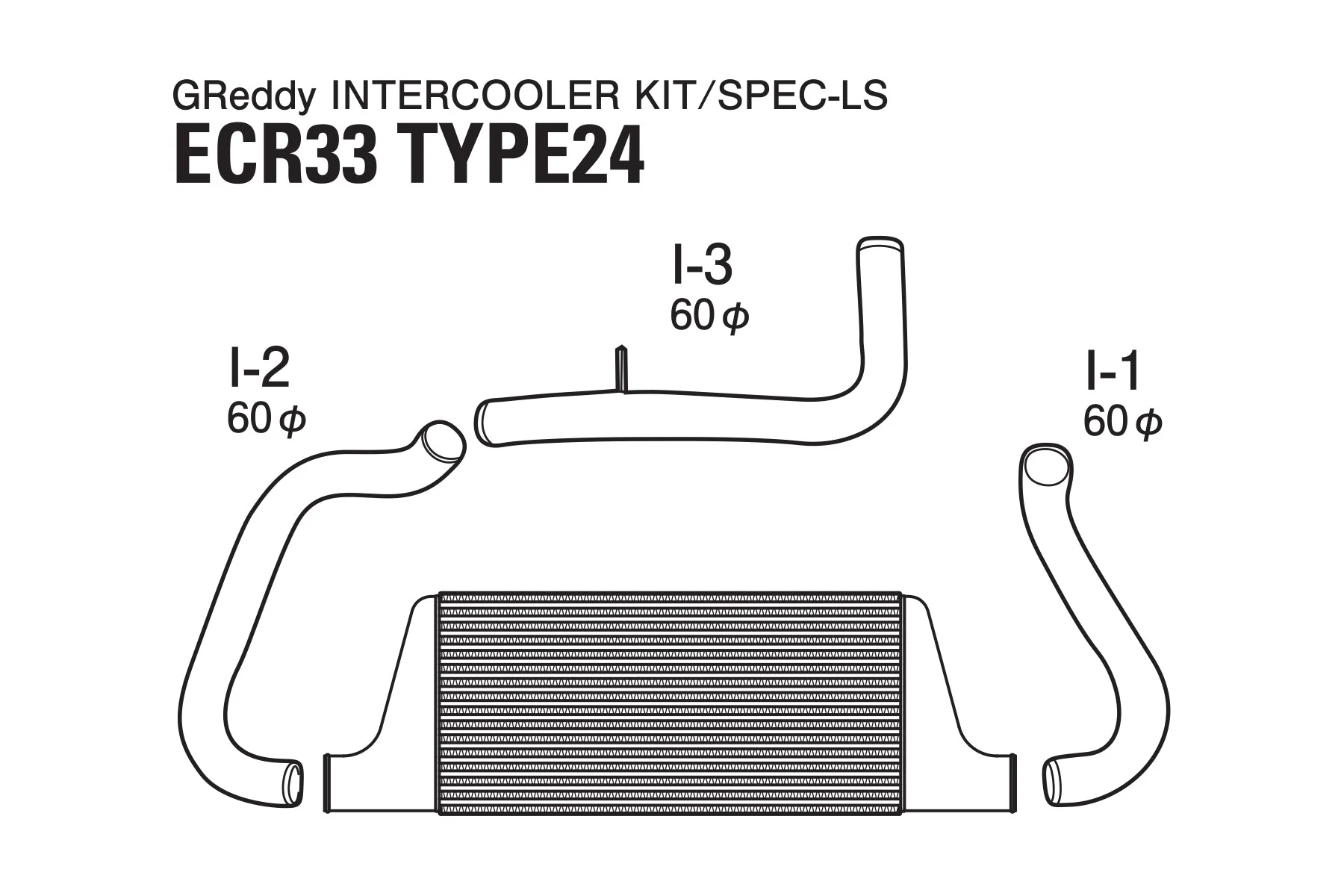

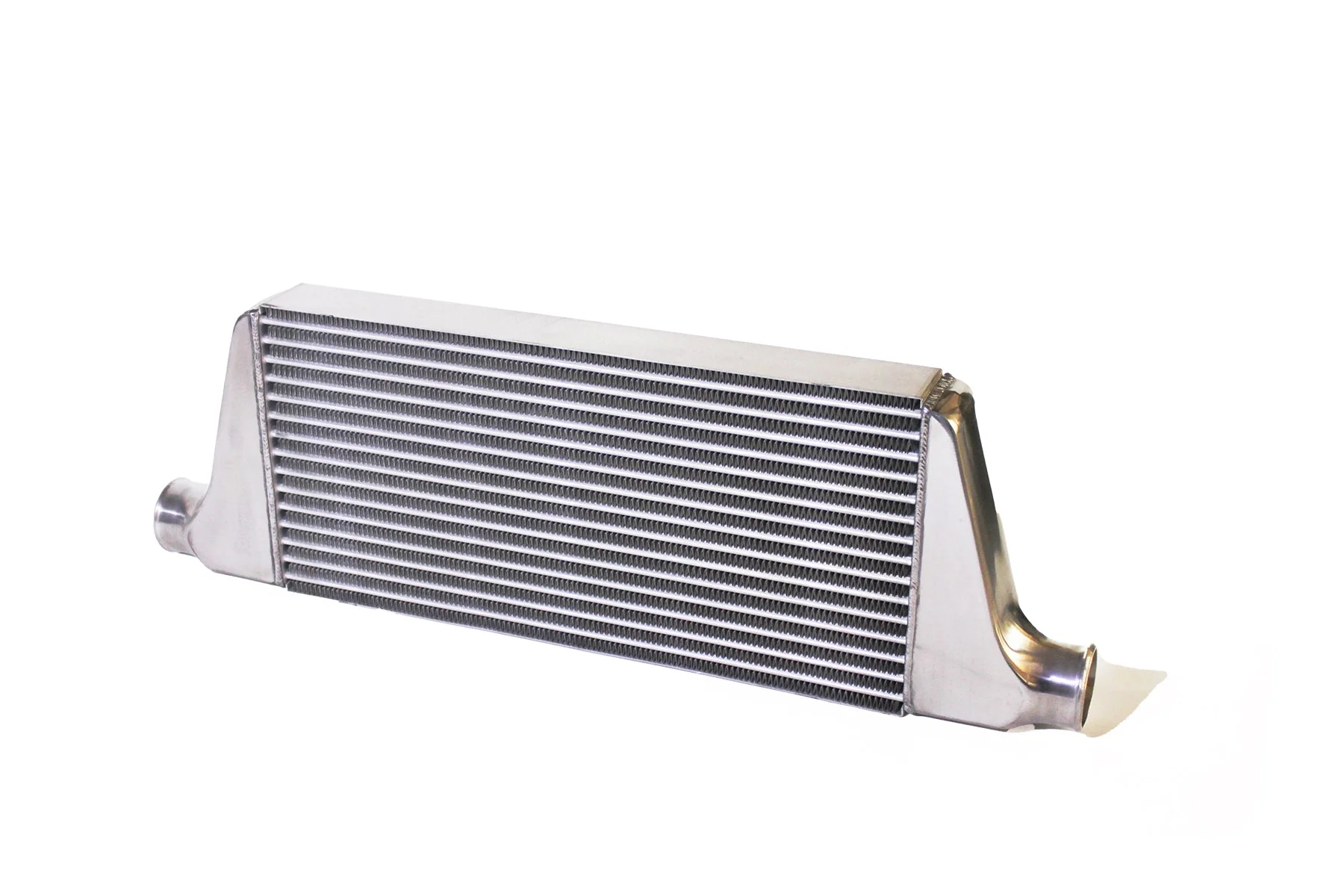

GREDDY INTERCOOLER KIT SPEC-LS T-24 ECR33 - (12020482)



Skyline ECR33

RB25DET 93.08～98.04

SPEC-LS

TYPE24E H284/L600/W660

In front of the radiator

12020482



Boost Up - Sports Turbine Class Recommended Cost-Effective Intercooler

Product features

• Cooling and response performance are balanced at a high level.
• Excellent performance and value for money.
• The side tank and aluminum pipe are barrel finished.
• The inner fin uses a straight hole fin. Compared to the offset inner fins of the intercooler kit, the straight hole fins are used for low pressure drop type and are lightweight.
• Low cost, excellent cooling performance and high response with a lightweight core.

Specification

• Core Type: TYPE24E
• Core size: H184/L600/W66
• Mounting position: in front of radiator

Compatible model: Skyline

• Model: ECR33
• Year:93.08~98.04
• P/N：12020482

Remarks

• Compatible with genuine turbine > GReddy turbine kit (actuator type).
• Vehicles with auto spoilers and fog lights are not allowed.
• * Oil cooler kit can be installed at the same time
• * Pipe sets can be installed at the same time
• ※ Reinforce processing required
• * Bumper processing required

GReddy Intercooler Kits
The addition of an efficient, light-weight tube and fin GReddy intercooler is one of the best ways to safely increase horsepower in a turbocharged engine. By reducing the engine's inlet temperatures, a denser air charge will enter the engine; this can make more horsepower at the same boost level and even more power at higher boost levels. Even if there is a factory-installed intercooler, generally these stock units are not ideal even for factory boost levels. They are usually mounted in awkward locations and become very susceptible to heat saturation. They are not ideal for increased boost levels.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
