GREDDY INTERCOOLER KIT T-24F FC3S - (12040201)



RX-7 FC3S

13B-T 89.03～91.11

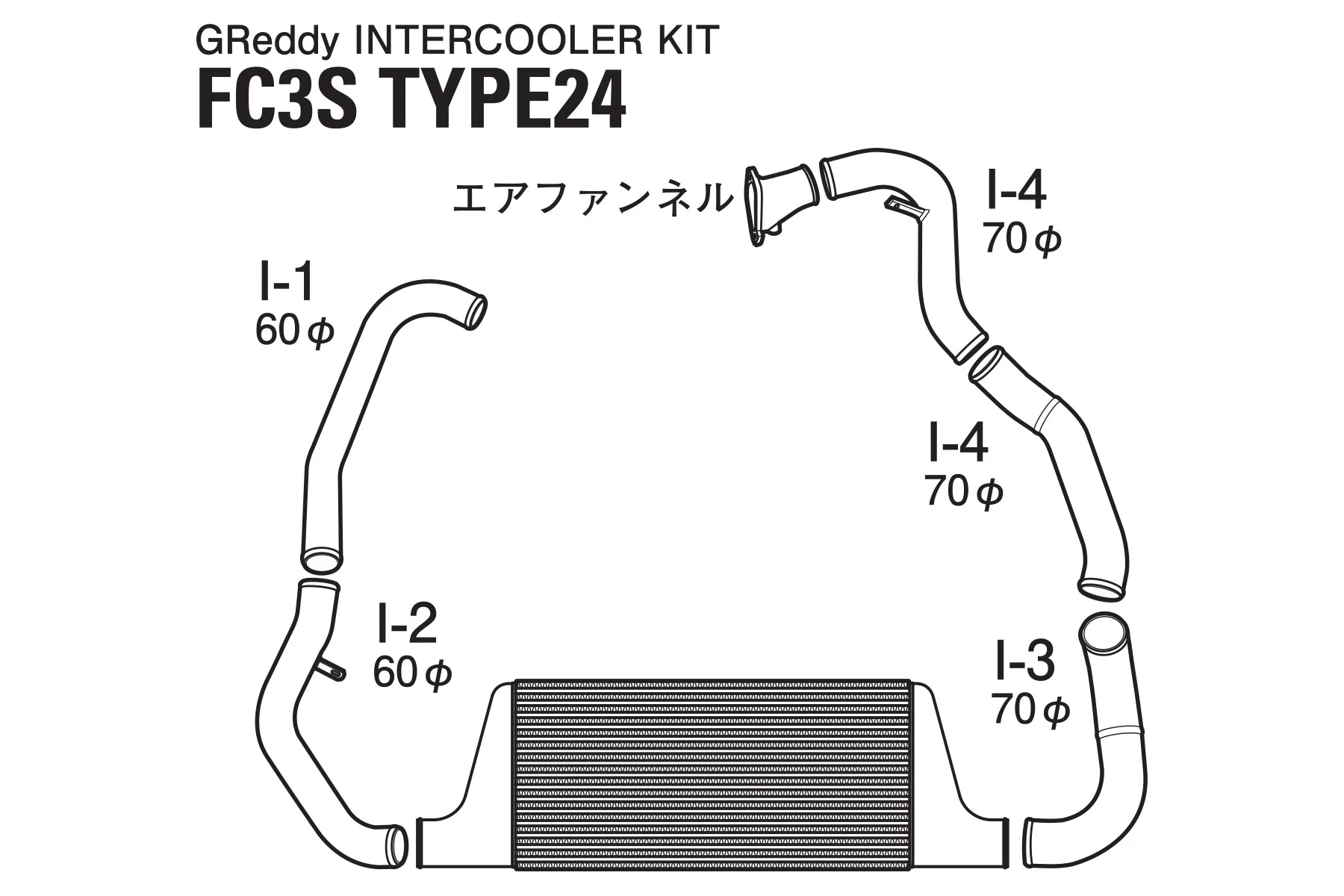

INTERCOOLER KIT

TYPE24F H284/L600/W66

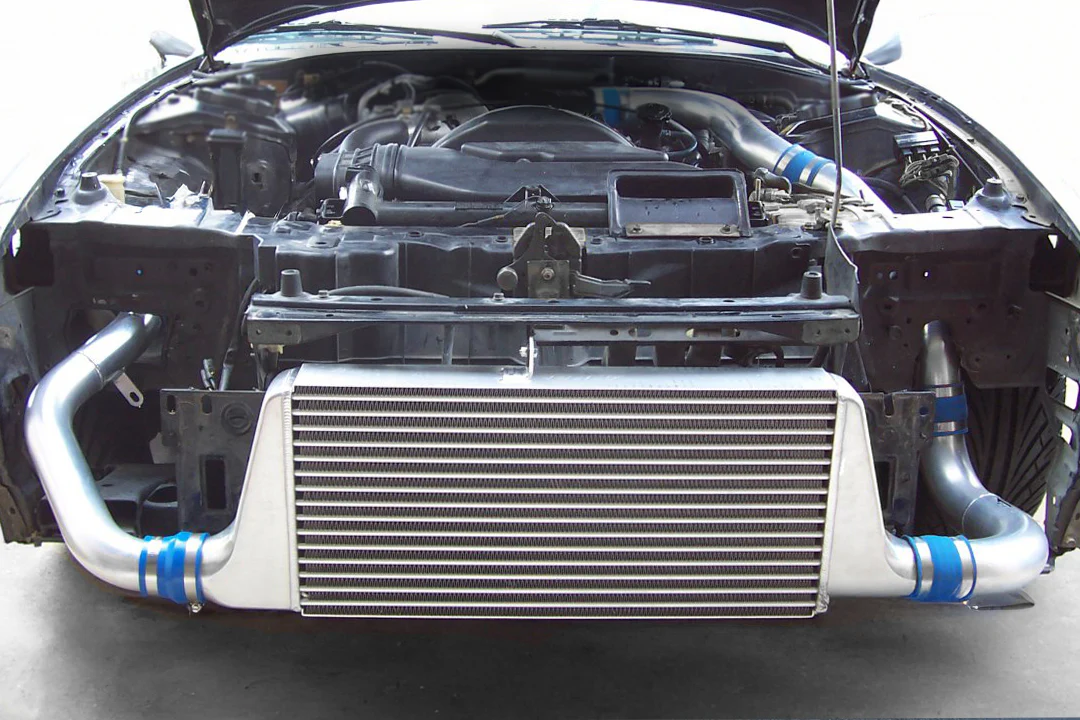

In front of the radiator

12040201

Recommended for sports turbines and fully tuned classes. Intercooler with high cooling efficiency.

Product Features

• With an emphasis on cooling efficiency, it maximizes charging efficiency and is compatible with high power and high boost.
• SPEC-R HG has a side tank and aluminum pipes that are buffed to a mirror finish, while SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.
• The inner fins use offset inner fins. The SPEC-R, which aims for high power and high boost, uses "offset inner fins".
• Optimized pressure loss and cooling effect to support high level high boost tuning.

Specifications

• Core type: TYPE42F
• Core size: h184/L625/W100
• Installation location: In front of the radiator

Compatible model: RX-7

• Compatible model: FC3S
• Year: 89.03-91.11
• CODE: 12040201

Remarks

• For use with genuine turbines after model change.
• An exposed air cleaner is required when installing the kit.
• Requires removal of original fog lamps.
• Cannot be installed on vehicles with ABS.
• AT not confirmed.
• * Bumper needs to be modified

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.
