TURBO UPGRADE KIT FD3S TD06 (for V layout) - (11540037)

11540037  GReddy Turbine Kit FD3S TD06SH 20G for V-layout

* For use specifically with GReddy V-mount intercooler / radiator

Specification

・ V layout STD kit only
・ Genuine catalyst can be installed
・ Air pump cannot be installed
* Genuine exhaust manifold gasket and nut (exhaust manifold) are required for installation.

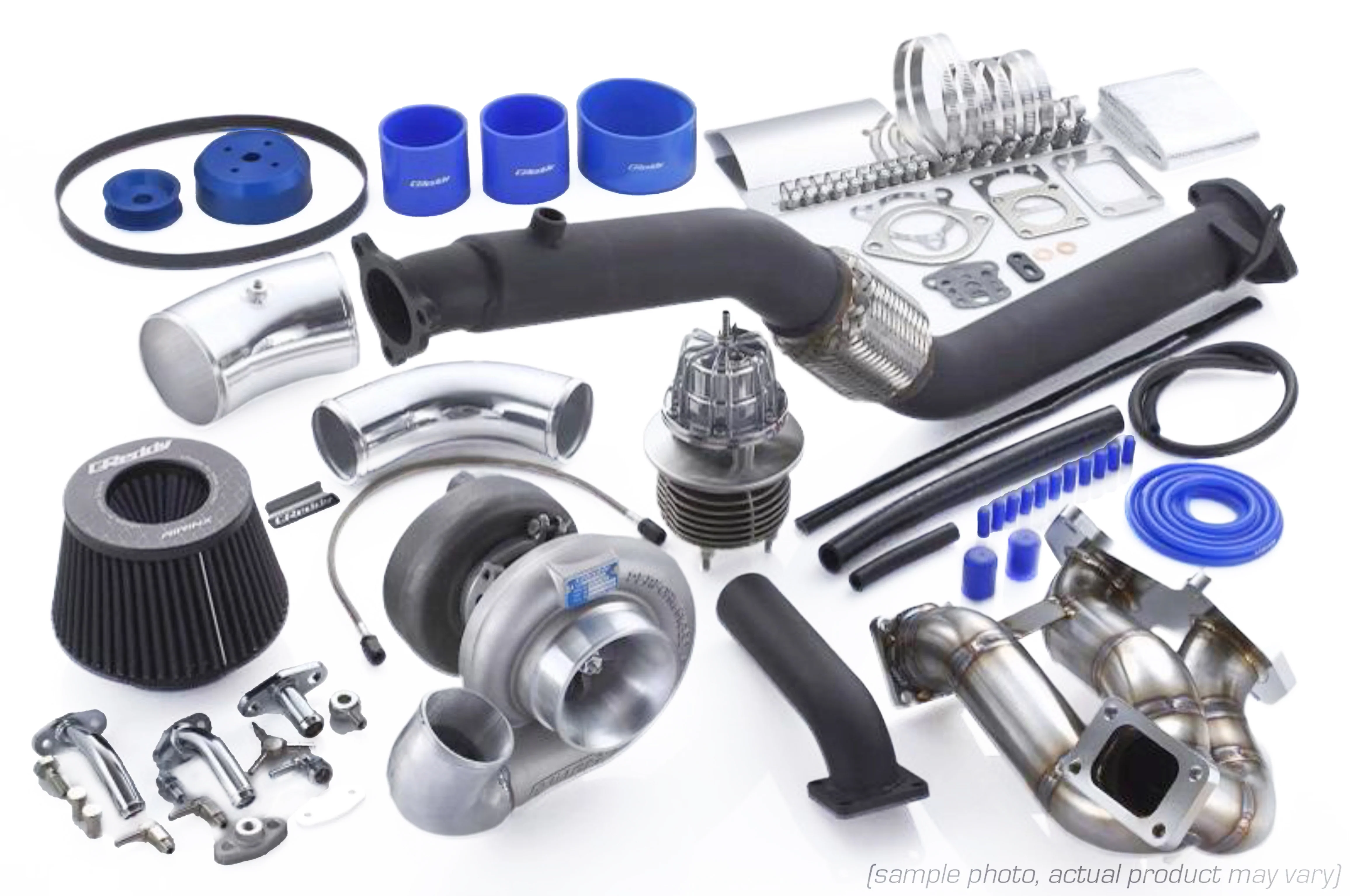

≪ Product Includes≫
・Turbine: TD06SH 25G-16㎠
・Exhaust manifold: 60φ3mm thick SUS elbow
・Wastegate: Thailand C High Flow (Set boost pressure 78kPa~)
・Compression tube
・Suction tube ・AIRINX M100



≪ Compatibility with our own products≫

CODE	Names of parts	suitability
12040703	GReddy FD3S V-Layout STD Kit V-2	〇
12040704	GReddy FD3S V-Layout M/C Pre Full Kit V-2	×
12040705	GReddy FD3S V-Layout After M/C Full Kit V-2	×
12040710	GReddy FD3S V-Layout Intercooler-less	×
12040711	GReddy FD3S V-Layout Radiator-less STD	〇
12040712	GReddy FD3S V Layout Radiator-less M/C Front Full Pipe	×
12040713	GReddy FD3S V Layout Radiator-less M/C Rear Full Pipe	×



Mazda / RX-7

Model : FD3S
Engine Model : 13B-REW
Model : 91.11~02.08

Turbine Kit
TRUST CODE : 11540037
