TYPE-I O/C FILTER RELOCATION ADAPTER, FILTER: 3/4-16UNF, 10AN - (12401114)

TYPE-I O/C FILTER RELOCATION ADAPTER, FILTER: 3/4-16UNF, 10AN - (12401114)

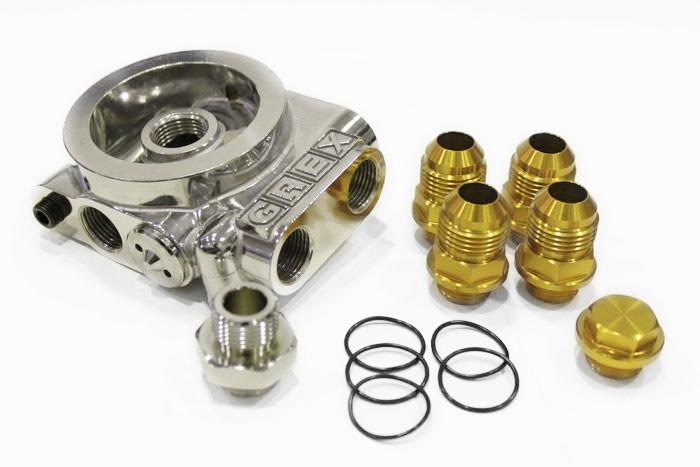

GReddy Universal Remote Oil Filter Oil Block Type I with AN -10 Fittings.  With built-in GReddy Thermostat. (70-80 C)
12401114 - Universal Remote Oil Filter Oil Block (Type I) AN10  for 3/4x16UNF Filter (filter sold separately)

  * IMPORTANT! - 12009990 - *optional -10AN bypass tube (if no oil cooler is used)
                                                 Oil outlet and inlet for the oil cooler must be looped back.



Ideal for custom Oil Cooler Kits with oil filter relocation.

- Ideally to used with -10 AN Oil Block Adapter to engine without thermostat :
   M20 x P1.5 - P/N 12401129 or 3/4 x 16UNF - P/N 12401111 (sold separately) or
Type-F: M20 x P1.5 - P/N 12401131 or 3/4 x 16UNF - P/N 12401135 (sold separately)
GReddy x Taarks Collab. RB-specific Remote Oil Block  - p/n 12428100

Use P/N 16400721 for 1/8PT ports to use with Pressure & Temperature Sensors

** Optional GReddy Direct M18xP1.5 O-ring fittings - 1240215X


$150.00
TYPE-I O/C FILTER RELOCATION ADAPTER, FILTER: 3/4-16UNF, 10AN - (12401114)—
$150.00

Product Information

Shipping & Returns

Description

GReddy Universal Remote Oil Filter Oil Block Type I with AN -10 Fittings.  With built-in GReddy Thermostat. (70-80 C)
12401114 - Universal Remote Oil Filter Oil Block (Type I) AN10  for 3/4x16UNF Filter (filter sold separately)

  * IMPORTANT! - 12009990 - *optional -10AN bypass tube (if no oil cooler is used)

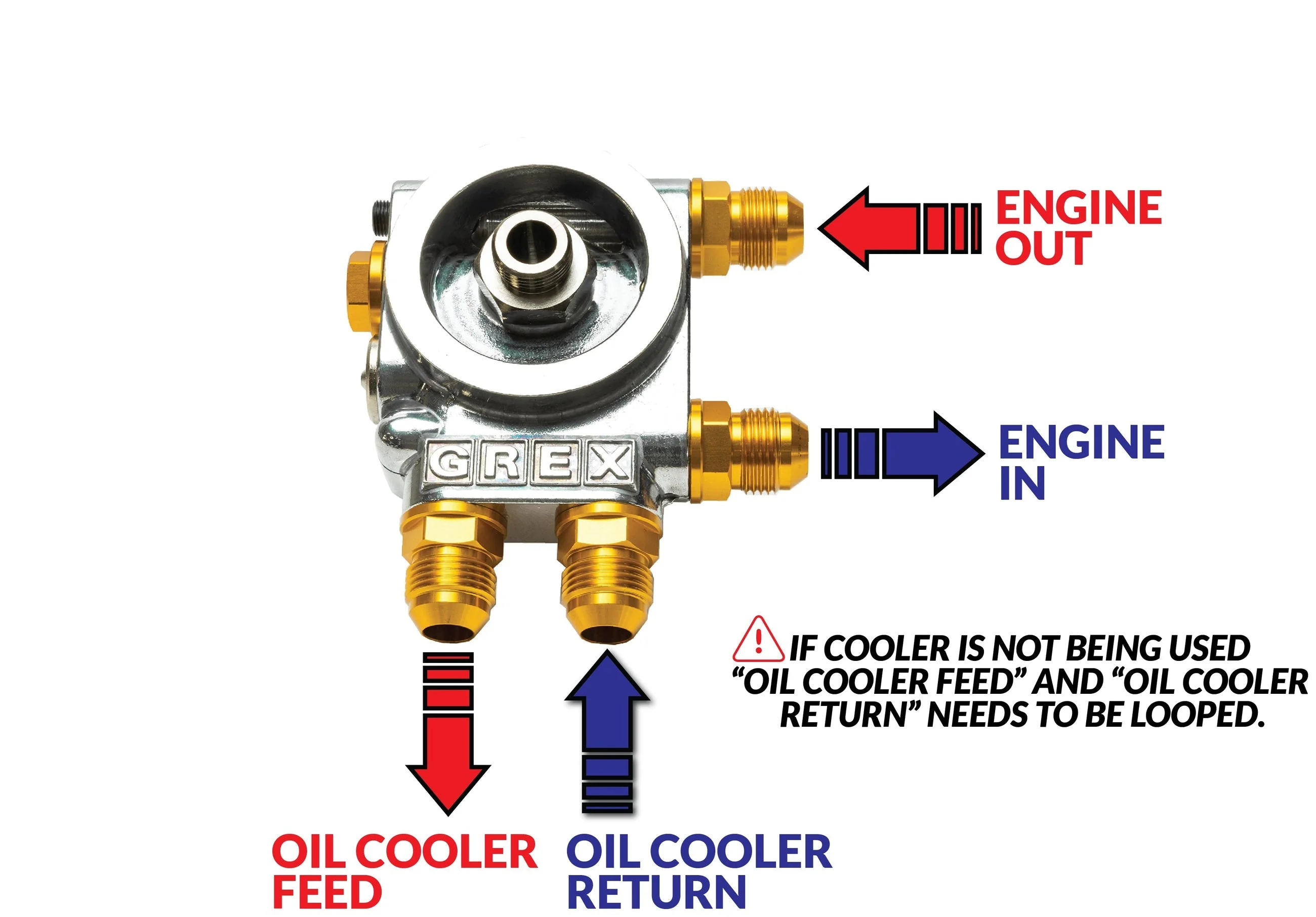

                                                 Oil outlet and inlet for the oil cooler must be looped back.

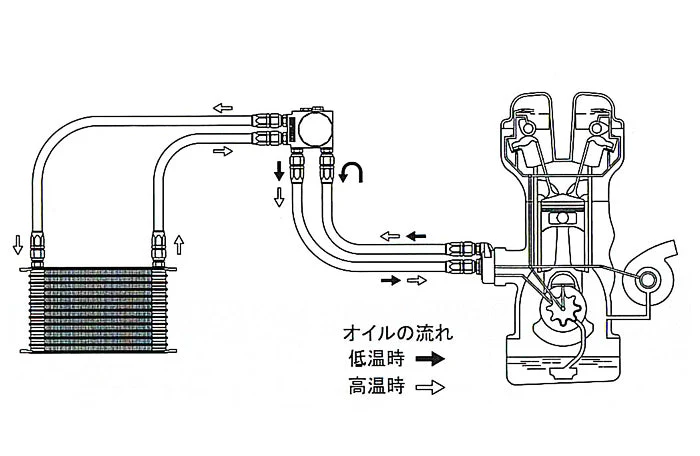

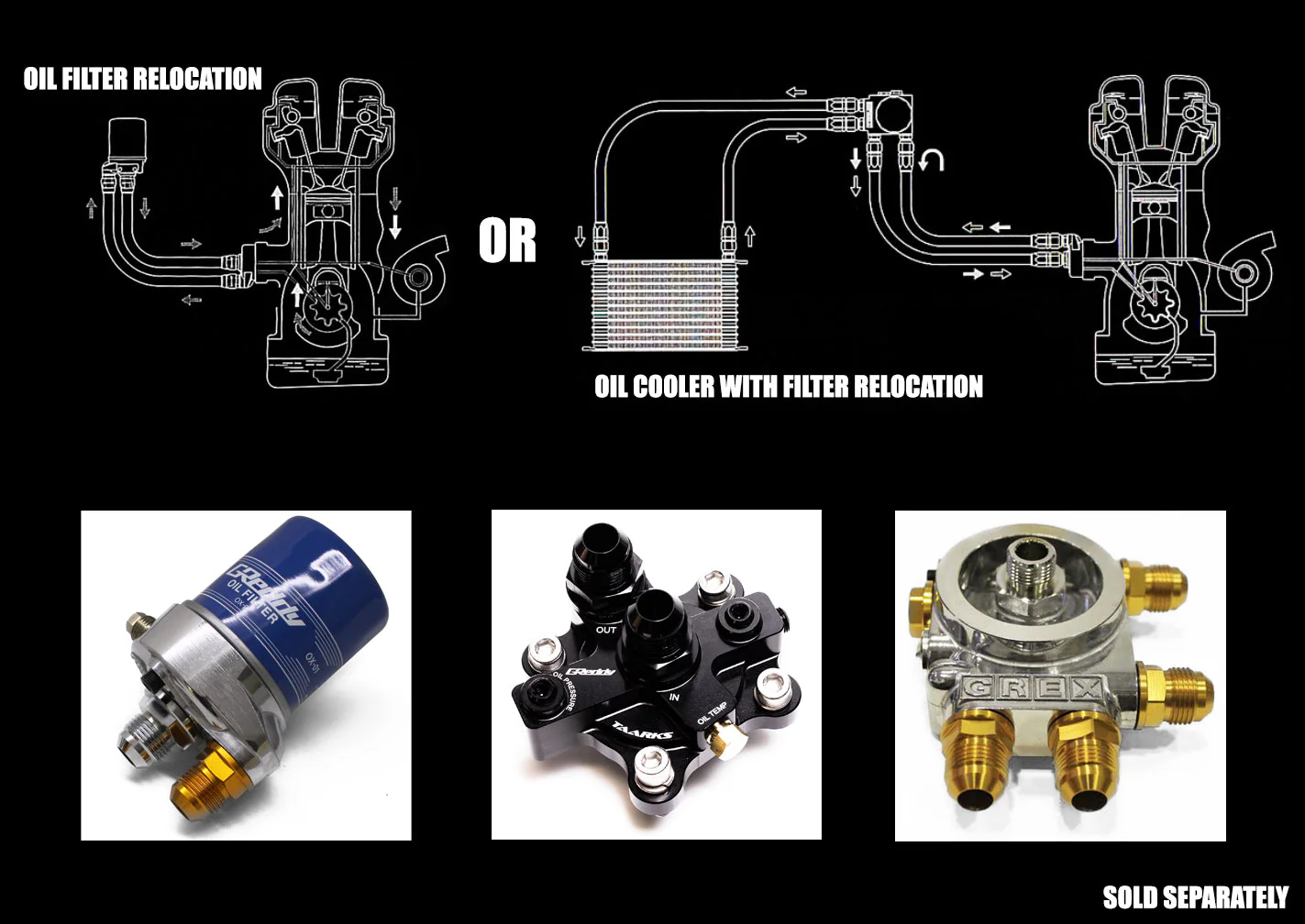

Ideal for custom Oil Cooler Kits with oil filter relocation.

- Ideally to used with -10 AN Oil Block Adapter to engine without thermostat :
   M20 x P1.5 - P/N 12401129 or 3/4 x 16UNF - P/N 12401111 (sold separately) or
Type-F: M20 x P1.5 - P/N 12401131 or 3/4 x 16UNF - P/N 12401135 (sold separately)
GReddy x Taarks Collab. RB-specific Remote Oil Block  - p/n 12428100

Use P/N 16400721 for 1/8PT ports to use with Pressure & Temperature Sensors

** Optional GReddy Direct M18xP1.5 O-ring fittings - 1240215X
