OIL COOLER KIT HI-CAPACITY FRONT MOUNT CIVIC TYPE R 2017-21 - (12058003)

12058003 – Honda (FK8) 2016-2019 Civic Type-R Hi-Capacity Oil Cooler Kit

The GReddy Performance Products Civic Type R Oil Cooler Kit addresses the documented cooling demands of the high performance K20C1 engine. By mounting a high-capacity K-type Koyo core, just above the intercooler, in an unused area just behind the front grill, it does not hamper airflow. For constant oil temperatures, the other key component in the kit, is the “tried and true” GREX oil block adapter with integrated thermostat for quick engine oil warmups. The oil block and 10row oil cooler is connected by high flow -10 AN fittings high-performance braided line. The complete kit also includes bolt-on brackets, necessary hardware.

* Not compatible with 2020 model Type R

Mounts above intercooler behind center grill

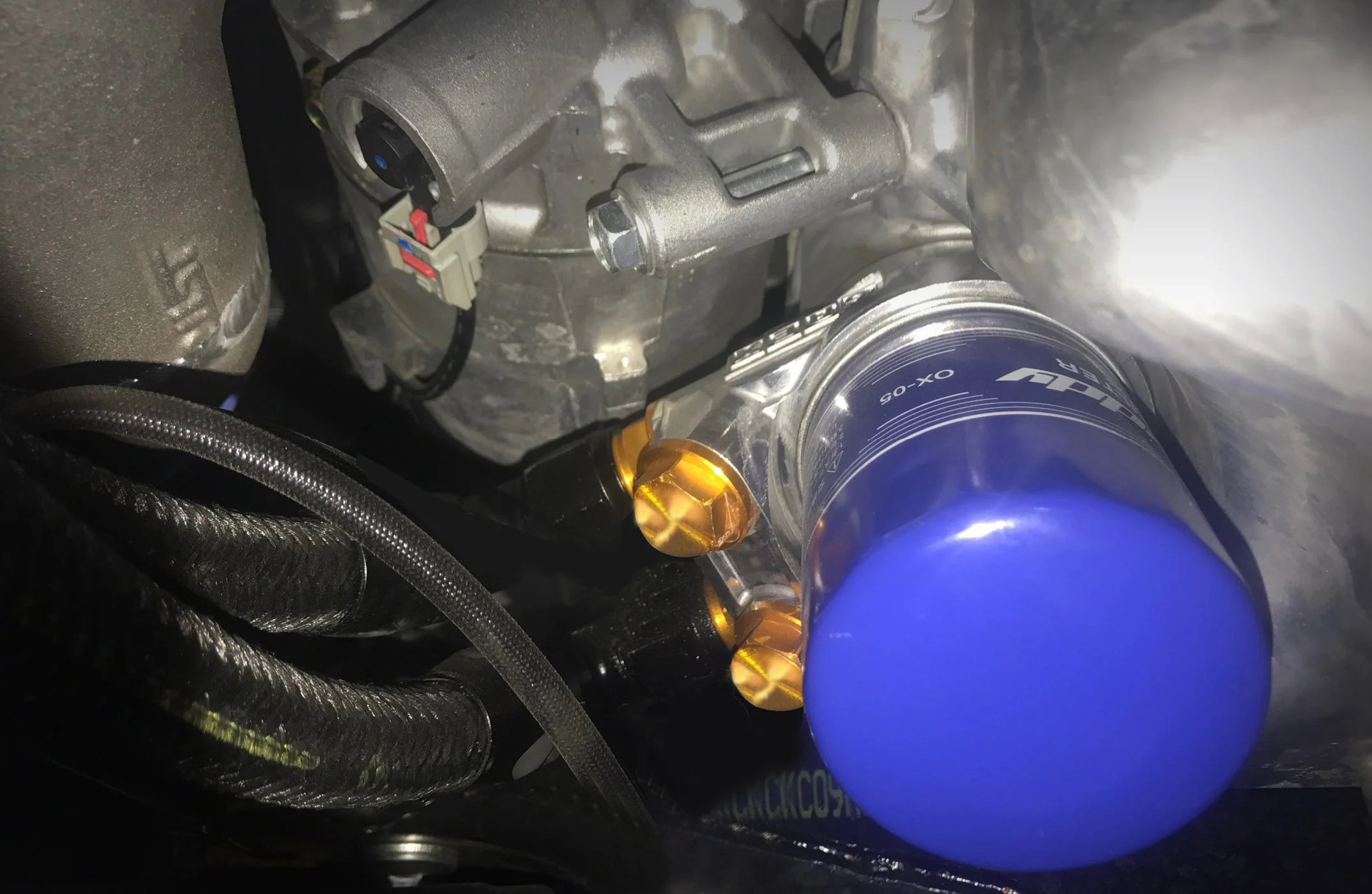

M20xP1.5 GREX Oil Block Adapter with built in thermostat

and ducting plate, brackets, hardware

K-type L core (+TBA cc or +0.TBA quarts)

* Recommend to use GReddy Oil Filter OX-05 M20-P1.5, Dia. 65mm, H75mm p/n 13901105 or equivalent

GPP Oil Cooler Kits help prolong the life of your oil and in turn your internal engine components. Hard driving causes higher engine temperatures. Factory oil coolers are normally small water-cooled devices sandwiched between the oil filter and engine block. These tax the cooling system even under normal driving conditions. GPP oil coolers are an excellent addition, and are especially effective in harsh driving environments. They increase oil capacity, decrease oil temperatures, and extend engine and oil life.
