OIL COOLER KIT NC1010G CIVIC TYPE R 2017-19 - (12058002)
*Not compatible with 2020 model Type R
NS1010G - 10row GReddy Oil Cooler with -10 XRP lines

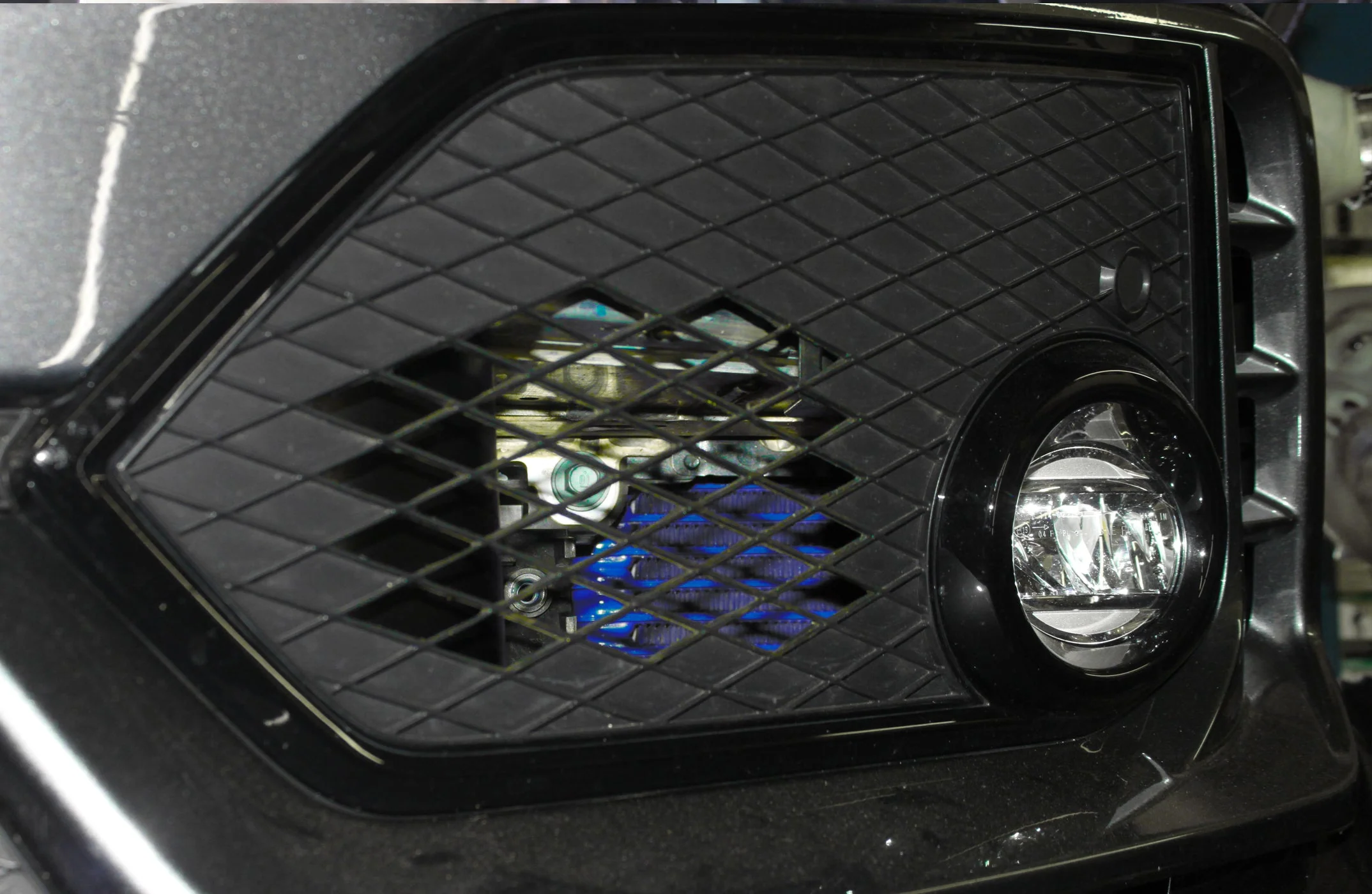

Ā Ā Mounts behind left side of the front bumperĀ
Ā Ā *(NEW GPP replacement OEM driver side front mesh option p/n 17550110)

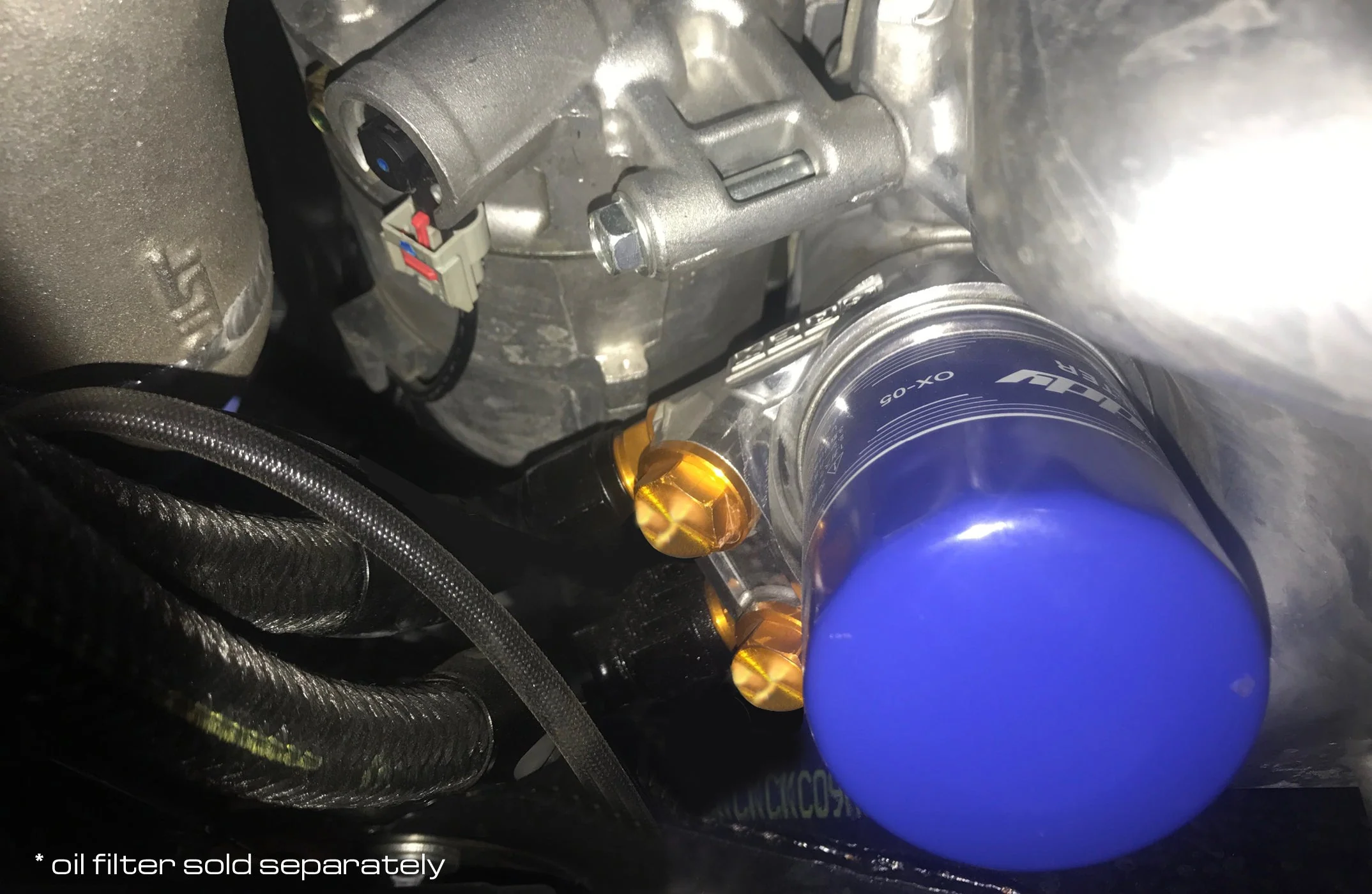

M20xP1.5 GREX Oil Block Adapter with built in thermostat
and ducting plate, brackets, hardware
NS1010G core (+540cc or +0.57 quarts)
Ā * Recommend to use GReddy Oil Filter OX-05 M20-P1.5, Dia. 65mm, H75mm p/n 13901105 or equivalent
Ā

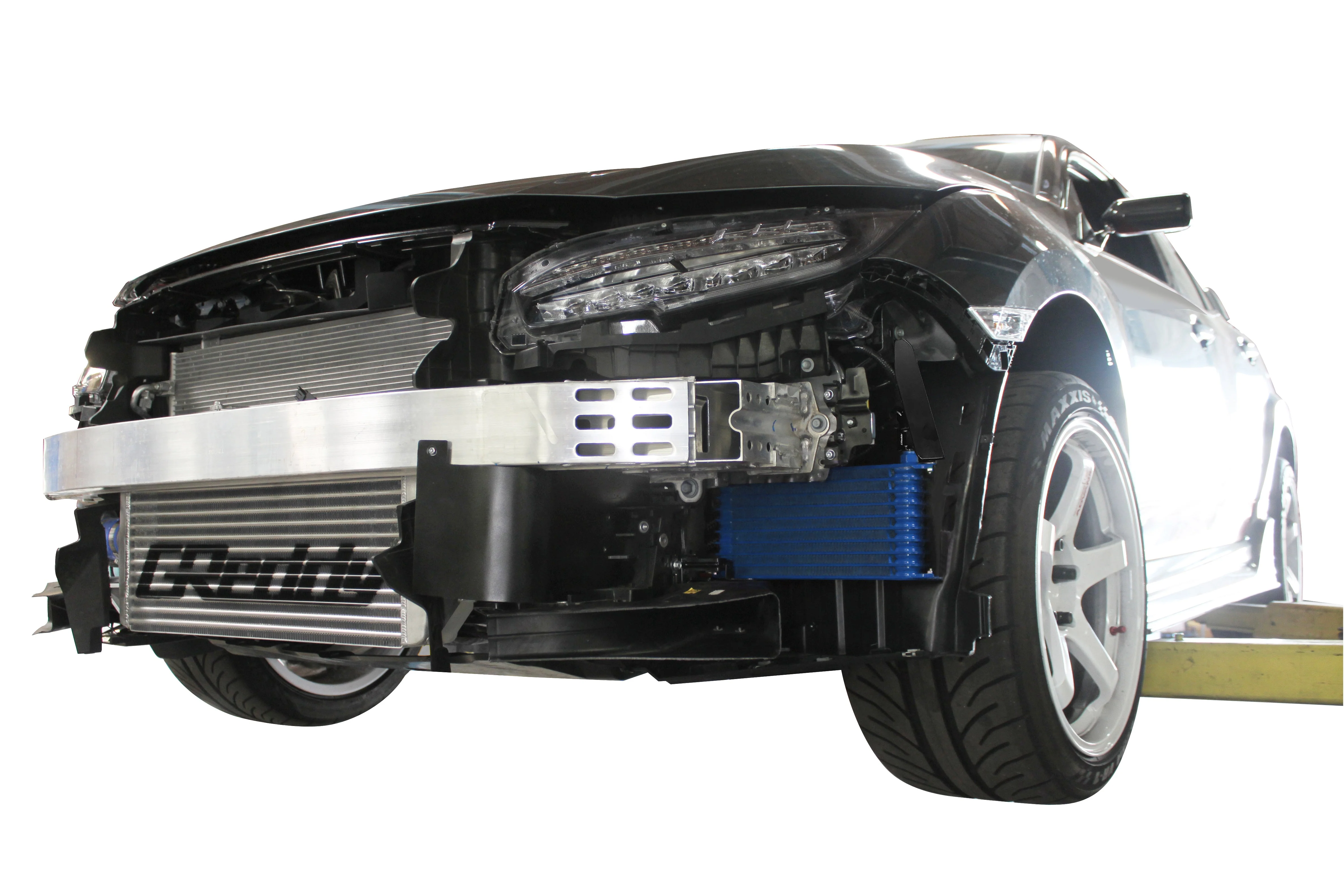

The GReddy Performance Products Civic Type R Oil Cooler Kit addresses the documented cooling demands of the high performance K20C1 engine. By mounting an efficient GReddy inner-fin oil cooler core, in an unused area of the front left bumper, it does not harm air-flow to the intercooler or radiator. For constant oil temperatures, the other key component in the kit, is the ātried and trueā GREX oil block adapter with integrated thermostat for quick engine oil warm ups. The oil block and 10row oil cooler is connected by high flow -10 AN fittings and lightweight XRP performance lines. The complete kit also includes bolt-on brackets, necessary hardware and a circuit-spec air-duct, to maximize the cooling effects.
Original: $750.00
-70%$750.00
$225.00Product Information
